What is the difference between single-acting and double-acting hydraulic presses?

Single-acting presses have a single connection to a source of pressurised fluid and the other end is connected to a reservoir or return line.Double-acting presses, on the other hand, have two connections to a source of pressurised fluid, wherein one connection helps the cylinder to extend and the other let it retract during the operation.

What is the use of an H-frame hydraulic press?

The H-frame consists of two pillars that support the cylinder and the upper and lower platens. This design allows them to create better stability for tasks like stamping, punching, bending, cutting, forging, deep drawing and straightening metals or plastics. In addition, H-frame presses offer high precision, easy maintenance and the ability to withstand large loads.

Where are movable and fixed cylinders used?

A movable cylinder moves about the press's frame where it needs to exert force on the workpiece. For example, in a stamping press, the cylinder moves downwards to apply force to the stamping die.Fixed cylinders are used in presses, where the cylinder is fixed on the punching plate while the workpiece is placed on a bed. In operation, the gliding screw provides an upward force while the cylinder provides a downward force to the upper body, causing the punching machine to move downwards with a greater impact and cut / shape the workpiece.

Hydraulic Presses

Filter

Hydraulic presses are used in a wide range of industrial and manufacturing applications, such as forging, stamping, deep drawing and pressing. They use a fluid (oil) to generate a compressive force... Read More

ENERPAC -

IP Series H Frame Hydraulic Presses

Style	Model	Capacity	Cylinder Type	Dimension B	Dimension C	Dimension D	Dimension E	Dimension F	Dimension G	Price (inc. GST)
A	IPE1215	10 ton.	Single-Acting, Spring Return	-	46.75"	5"	18.63"	24.88"	-	A$ 12489.94
B	IPH1240	10 ton.	Single-Acting, Spring Return	-	46.75"	5"	18.63"	24.88"	-	A$ 5764.59
C	IPH1234	10 ton.	Double Acting, Hydraulic Return	-	46.75"	5"	18.63"	24.88"	-	A$ 8989.30
D	IPA1244	10 ton.	Double Acting, Hydraulic Return	-	46.75"	5"	18.63"	24.88"	-	A$ 9629.25
E	IPA1220	10 ton.	Single-Acting, Spring Return	-	46.75"	5"	18.63"	24.88"	-	A$ 6741.97	RFQ
F	IPE2510	25 ton.	Single-Acting, Spring Return	-	57"	11.88"	29"	40.5"	4"	A$ 32134.08	RFQ
G	IPA2520	25 ton.	Single-Acting, Spring Return	-	57"	11.88"	29"	40.5"	4"	A$ 18989.23	RFQ
H	IPH2531	25 ton.	Single-Acting, Spring Return	-	57"	11.88"	29"	40.5"	4"	A$ 18660.11
I	IPE2505	25 ton.	Single-Acting, Spring Return	-	57"	11.88"	29"	40.5"	4"	A$ 19983.24	RFQ
C	IPH3080	30 ton.	Double Acting, Hydraulic Return	-	57"	11.88"	29"	40.5"	4"	A$ 21881.49	RFQ
J	IPA3071	30 ton.	Double Acting, Hydraulic Return	-	57"	11.88"	29"	40.5"	4"	A$ 27152.40	RFQ
F	IPE3060	30 ton.	Double Acting, Hydraulic Return	-	57"	11.88"	29"	40.5"	4"	A$ 34600.82	RFQ
K	IPH5030	50 ton.	Single-Acting, Spring Return	18.76"	54"	10.38"	28.75"	42.75"	5"	A$ 27787.37	RFQ
L	IPE5010	50 ton.	Single-Acting, Spring Return	18.76"	54"	10.38"	28.75"	42.75"	5"	A$ 41538.93	RFQ
M	IPE5005	50 ton.	Single-Acting, Spring Return	18.76"	54"	10.38"	28.75"	42.75"	5"	A$ 27295.35	RFQ
N	IPH5031	50 ton.	Single-Acting, Spring Return	18.76"	54"	10.38"	28.75"	42.75"	5"	A$ 26931.32	RFQ
O	IPH5080	50 ton.	Double Acting, Hydraulic Return	18.76"	54"	10.38"	28.75"	42.75"	5"	A$ 33485.47	RFQ
P	IPA5073	50 ton.	Double Acting, Hydraulic Return	18.76"	54"	10.38"	28.75"	42.75"	5"	A$ 40348.78	RFQ
Q	IPA5021	50 ton.	Single-Acting, Spring Return	18.76"	54"	10.38"	28.75"	42.75"	5"	A$ 28551.99	RFQ
R	IPE5060	50 ton.	Double Acting, Hydraulic Return	18.76"	54"	10.38"	28.75"	42.75"	5"	A$ 44830.13
S	IPH10030	100 ton.	Single-Acting, Spring Return	20"	51"	11.69"	35"	51"	5.75"	A$ 45711.11	RFQ
T	IPH10080	100 ton.	Double Acting, Hydraulic Return	20"	51"	11.69"	35"	51"	5.75"	A$ 47539.56	RFQ
U	IPA10023	100 ton.	Single-Acting, Spring Return	20"	51"	11.69"	35"	51"	5.75"	A$ 49368.00	RFQ
R	IPE10060	100 ton.	Double Acting, Hydraulic Return	20"	51"	11.69"	35"	51"	5.75"	A$ 61710.00
F	IPE10010	100 ton.	Single-Acting, Spring Return	20"	51"	11.69"	35"	51"	5.75"	A$ 56681.78	RFQ

DAKE CORPORATION -

Single Acting, Movable Cylinder, H-Frame Hydraulic Press

Style	Model	Base Length	Overall Height	Pump Handle Effort @ Rated Capacity (lb.)	Price (inc. GST)
A	907002	43.5"	85"	25 lb.	A$ 8367.54	RFQ
B	907003	55"	87"	50 lb.	A$ 12712.23	RFQ

DAKE CORPORATION -

Single Acting, Fixed Cylinder, H-Frame Hydraulic Press

Style	Model	Base Length	Base Width	Frame Type	Hose Size	Overall Height	Price (inc. GST)
A	972200	23"	19"	Bolted Channel Iron	Rubber	36"	A$ 796.53
B	972210	24"	19"	Bolted Channel Iron	Rubber	60"	A$ 1198.81	RFQ
C	972002	31"	19"	Welded Steel Plate	Rubber	71"	A$ 11774.40	RFQ
D	907001	42.5"	30"	Welded Channel Iron	Steel Tube	76"	A$ 6838.86	RFQ

DAKE CORPORATION -

Hydraulic Press

Style	Model	Base Length	Base Width	Overall Height	Price (inc. GST)
A	942401	43"	37"	108"	A$ 83239.21	RFQ
A	942503	58"	56"	150"	A$ 156794.40	RFQ

BAILEIGH INDUSTRIAL -

Indexable Profiling End Mill

Style	Model	Base Length	Base Width	Overall Height	Price (inc. GST)
A	1013161	68"	52"	94"	A$ 83580.64
B	CFP-112HD	77"	51"	96"	A$ 206827.52

FERVI -

Hydraulic Shop Press

Style	Model	Capacity	Cylinder Dia.	Size	Price (inc. GST)
A	P001/04	4000 kg	40 mm	450 x 400 x 655 mm	A$ 408.99	RFQ
B	P001/10	10000 kg	56 mm	565 x 500 x 1040 mm	A$ 612.82	RFQ
C	P001/12	12000 kg	56 mm	730 x 550 x 1600 mm	A$ 749.59	RFQ
D	P001/20	20000 kg	75 mm	690 x 600 x 1830 mm	A$ 1239.04	RFQ
E	P001/30	30000 kg	92 mm	875 x 700 x 1780 mm	A$ 1515.28	RFQ
F	P001/45	45000 kg	90 mm	1400 x 800 x 1700 mm	A$ 3835.12	RFQ
G	P001/75	75000 kg	-	-	-	RFQ

GRAY -

Hydraulic Press

Style	Model	Base Length	Base Width	Frame Type	Hose Length	Overall Height	Pump Type	Price (inc. GST)
A	SP-75S	44"	78"	Steel	5 ft. 6"	85"	Air / Hyd.	A$ 31927.59	RFQ
B	SP25 Air	70.375"	40.5"	H Frame	5 ft. 2"	70.375"	Air	A$ 10477.06	RFQ

ENERPAC -

A Series C-Clamp Presses

Style	Model	Capacity	Dimension A	Dimension B	Dimension C	Dimension E	Dimension F	Dimension H	Dimension J	Price (inc. GST)
A	A210	10 ton.	16"	11.13"	9"	3.25"	2 1/4"-14 UN	3"	2.5"	A$ 2809.44
A	A220	20 ton.	21.25"	13.63"	11.88"	4.76"	3 5/16"-12 UN	3.75"	2.75"	A$ 3407.56

PALMGREN -

Hydraulic Presses

Style	Model	Dimensions	Maximum Work Diameter	Minimum Work Diameter	Motor Hp	Ram Diameter	Ram Size	Price (inc. GST)
A	9661610	23 x17 x36"	19 x 19"	19 x 0.04"	-	1.5"	6.3"	A$ 1677.16	RFQ
B	9661611	23 x17 x60"	19 x 40"	19 x 0.04"	-	1.5"	6.3"	A$ 2186.39	RFQ
B	9661613	23 x17 x76"	19 x 19"	19 x 0.04"	-	2.28"	6.3"	A$ 4114.88	RFQ
C	9661612	28 x17 x80"	19.5 x 19.5"	19.5 x 0.75"	3 hp	2.3"	10"	A$ 5918.53	RFQ
B	9661614	28 x18 x88"	19.5 x 23.5"	19.5 x 0.75"	4 hp	2.5"	10"	A$ 10289.66	RFQ
B	9661616	40 x20 x88"	31.5 x 27.5"	31.5 x 0.75"	4 hp	3.15"	8.65"	A$ 17496.04	RFQ
B	9661615	50 x23 x87"	23 x 25.5"	23 x 0.75"	-	2.5"	11.81"	A$ 20599.04	RFQ

WESTWARD -

Hydraulic Presses

Style	Model	Price (inc. GST)
A	1MZJ6	A$ 1991.17	RFQ
B	1MZJ7	A$ 1576.10
C	1MZJ4	A$ 2608.09	RFQ

GRAY -

Mountable Guard For Shop Press Mdl Sp-75

Model	Item	Price (inc. GST)
SP75S Guard	AA3KUJ	A$ 7670.90	RFQ

DAKE CORPORATION -

Hydraulic Press, Hand Operated, 150 Ton Capacity

Model	Item	Price (inc. GST)
907005	CJ6UCK	-	RFQ

DAKE CORPORATION -

Hydraulic Press, Rolling Bed Type, Air Operated, Double Pump, 50 Ton Capacity

Model	Item	Price (inc. GST)
942304	CJ6UDG	-	RFQ

DAKE CORPORATION -

Hydraulic Press, Rolling Bed Type, Air Operated, Double Pump, 75 Ton Capacity

Model	Item	Price (inc. GST)
942308	CJ6UDH	-	RFQ

DAKE CORPORATION -

Hydraulic Press, Floor Type, Manual Operation, H-Frame, 20 Ton Capacity

Model	Item	Price (inc. GST)
972220	CJ6UEM	A$ 1762.01	RFQ

WESTWARD -

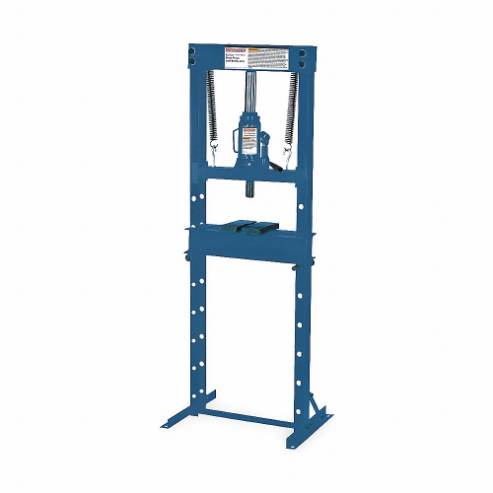

Hydraulic Economy Shop Press 12 Ton

Model	Item	Price (inc. GST)
1MZJ5	AF6PVX	A$ 1190.95	RFQ

Hydraulic Presses

We offer a wide range of hydraulic / arbor / C-clamp presses designed for applications in metal fabrication, cosmetic, pharmaceutical and glass manufacturing industries. For transforming metallic objects into sheets or thinning glass, these hydraulic press machines use a hydraulic cylinder to create a compressive force on the ram / piston which then transfers it to the fluid. Featuring a welded / bolted construction for maximum strength and durability, these hydraulic presses are offered in different frame capacities. Raptor Supplies offers a wide array of various hydraulic press manufacturers like Enerpac, Dake Corporation, Gray, Baileigh Industrial and OTC. For different applications, fixed / portable hydraulic press machines are available in movable, fixed, single-acting and double-acting cylinder options.

Working Mechanism

Hydraulic presses use a pump to pressurise fluid, typically oil, which is then directed into a cylinder.
The pressurised fluid then pushes a piston within the cylinder, creating a force that is transferred to a tool or dies attached to the cylinder.
The resultant force generated by the press can be used to shape or form metals and other materials.
